Based on the surface/interface charge storage mechanism of supercapacitors, their electrode materials require both a large ion - accessible specific surface area (SSA) and a high - performance electron - ion transport network. Two - dimensional mesoporous materials, by effectively coupling highly conductive components, high - capacitance materials, and porous structures, can provide a large SSA, abundant active sites, high electrical conductivity, rapid ion transport, and excellent structural stability. Ultimately, this can lead to a significant increase in the energy density of supercapacitors without sacrificing power density and cycle life. The improvement of their performance depends on the innovation of key component materials. Due to their unique physical and chemical properties, mesoporous materials have attracted much attention in the research of supercapacitors in recent years.
I. Used as Electrode Materials
1.1 Providing High Specific Surface Area
The capacitance of a supercapacitor is closely related to the specific surface area of the electrode material. Mesoporous materials have an extremely large specific surface area, which can reach several hundred or even thousands of square meters per gram. This allows for full contact between the electrode and the electrolyte, providing a large number of active sites for charge storage, thus significantly increasing the specific capacitance of the supercapacitor. Take mesoporous carbon materials as an example. The specific surface area of mesoporous carbon materials can reach 2800 m²/g. The specific capacitance of a supercapacitor prepared from this material has increased by 60% compared to traditional carbon electrodes, greatly enhancing the energy - storage capacity.
supercapacitors
1.2 Optimizing Ion Transport Channels
The pore size range of mesoporous materials, which is 2 - 50 nm, precisely meets the need for rapid electrolyte ion transport. During the charging and discharging process, ions can efficiently diffuse within the mesoporous structure, significantly reducing the transport resistance and improving the charging and discharging efficiency and power density of the supercapacitor. Through advanced in - situ characterization techniques combined with theoretical simulations, the ion transport mechanism of mesoporous tin dioxide electrode materials was studied. It was found that the mesoporous structure increased the ion diffusion coefficient by nearly 10 times, effectively improving the charging and discharging performance of the supercapacitor at high rates.

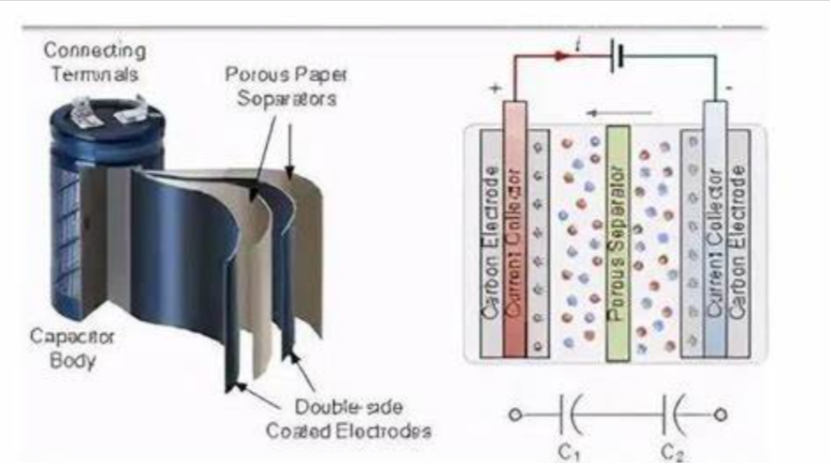

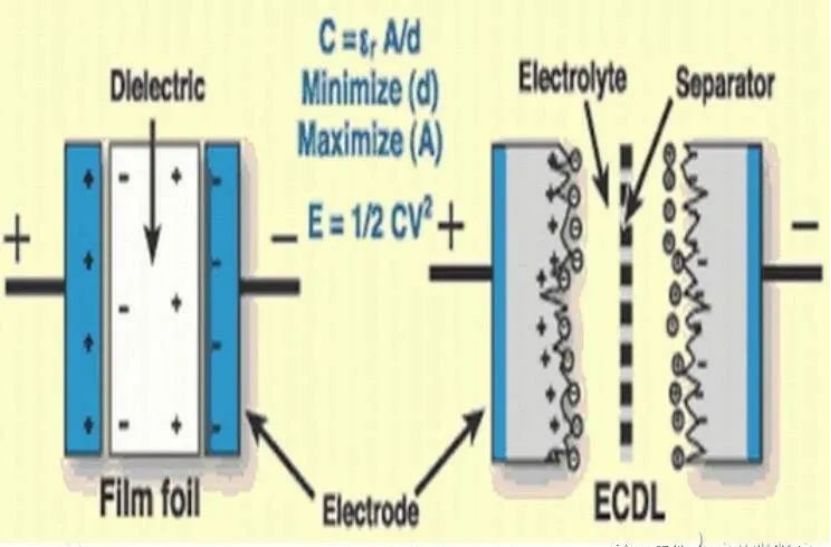

The structure and working principle of supercapacitors
II. As a Component of Composite Materials
2.1 Loading Active Substances to Enhance Performance
To further explore the performance potential of supercapacitors, mesoporous materials are often used as carriers to load active substances with high - capacitance performance, such as transition metal oxides (MnO₂, Co₃O₄, etc.) and conductive polymers (polythiophene, polyacetylene, etc.). The pore structure of mesoporous materials can achieve uniform dispersion of active substances, giving full play to their capacitance characteristics. In the prepared mesoporous titanium dioxide - loaded MnO₂ composite electrode, MnO₂ is uniformly distributed within the pores of mesoporous titanium dioxide. During the charging and discharging process, the structural stability of MnO₂ is significantly improved. The capacitance retention rate of the composite electrode still reaches 85% after 5000 charge - discharge cycles, demonstrating excellent cycle stability.
2.2 Improving the Structural Stability of Composite Materials
In composite materials, the three - dimensional pore structure of mesoporous materials can act as a supporting framework, effectively preventing the aggregation and structural collapse of other active materials during the charging and discharging process, thereby improving the structural stability and cycle life of the composite materials. This structural advantage enables the supercapacitor to maintain good performance after multiple charge - discharge cycles, extending the service life of the device.
III. Enhancing the Overall Performance of Supercapacitors
3.1 Increasing Energy Density
By rationally designing and selecting mesoporous materials as electrode materials or part of composite materials, it is possible to appropriately increase the operating voltage window of the supercapacitor while increasing the specific capacitance, thus effectively improving its energy density. The increase in energy density means that the supercapacitor can store more energy, making it more competitive in practical applications. For example, in electric vehicles and portable electronic devices, it can provide a longer cruising range.
3.2 Improving Power Density
The good ion - transport performance and rapid charge - transfer ability of mesoporous materials enable supercapacitors to store and release a large amount of charge in a short time, thus significantly improving their power density. Supercapacitors with high power density are suitable for applications that require rapid charging and discharging, such as the start - stop of electric vehicles and the energy - recovery systems of hybrid vehicles.
IV. Application in Electrolytes
4.1 Enhancing Ion Conductivity
Introducing mesoporous materials into the electrolyte is an effective strategy to improve ion conductivity. The high specific surface area and abundant pores of mesoporous materials can adsorb a large number of electrolyte ions and provide additional paths for ion transport. It was found that after adding mesoporous zeolite nanoparticles to the gel electrolyte, the ionic conductivity increased by 40%, and the power density of the supercapacitor increased by 35%, significantly enhancing its rapid charging and discharging ability.
4.2 Stabilizing the Electrolyte Structure
Some mesoporous materials interact with the polymer matrix in the electrolyte to form a stable three - dimensional network structure, enhancing the mechanical properties and stability of the electrolyte. This structure not only prevents the electrolyte from deforming or breaking during charging and discharging but also inhibits ion crystallization and precipitation, extending the service life of the electrolyte. Adding mesoporous zirconia to the polymer electrolyte increased the thermal decomposition temperature of the electrolyte by 60°C and the mechanical strength by 2.5 times, greatly improving the long - term stability of the supercapacitor.
V. Used as Separator Materials
5.1 Improving Ion Selectivity
The separator plays a crucial role in supercapacitors by separating the positive and negative electrodes and ensuring the selective transport of ions. Mesoporous materials can achieve selective permeation of different ions by precisely controlling the pore size and surface chemical properties. A mesoporous organosilicon separator with ion selectivity prepared by surface grafting reduced the self - discharge rate of the supercapacitor by 60% and increased the energy efficiency by 20%, effectively improving the performance of the supercapacitor.
5.2 Enhancing the Mechanical Properties of the Separator
Traditional separator materials have shortcomings in mechanical strength, while mesoporous materials have high mechanical strength and rigidity. Compositing mesoporous materials with traditional separator materials such as polymers can significantly enhance the mechanical properties of the separator. The tensile strength of the prepared mesoporous boron nitride/polyethylene composite separator is 90% higher than that of the pure polyethylene separator, effectively preventing short - circuits between the positive and negative electrodes and improving the safety of the supercapacitor.
